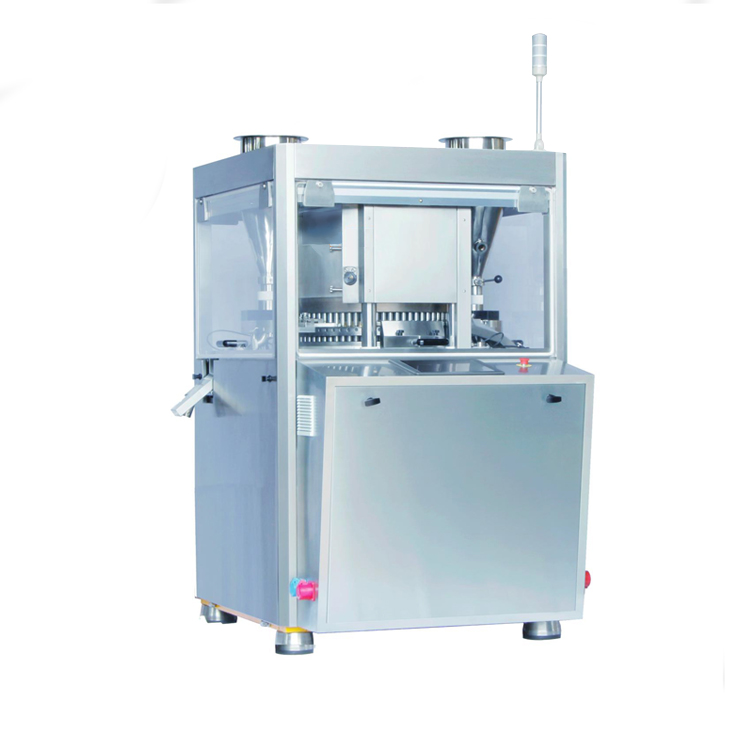

Home » Products » Tablet Press Machine » GZPK-720i Automatic Double Discharge High-speed Tablet Press

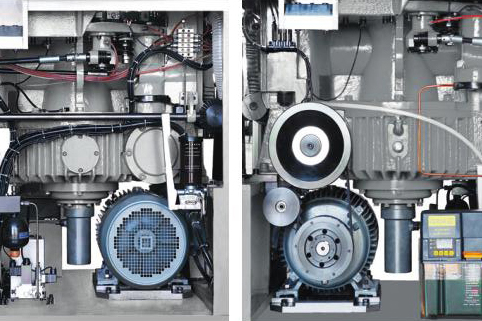

Imported hydraulic pump unit sustains main pressureand prepressure, process of pressing goes smoothly
with low noise;
Equipped with protective unit of overloading, auto stopped while pressure overloaded.
An easy disassembled structure has high maintainability.

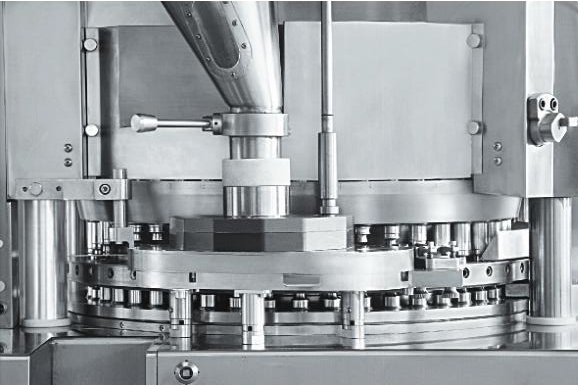

Force-feeding device controls the flow of powder and ensures the accuracy of feeding.
Feeder is easy to be disassembled, and the platform is easy to be regulated.

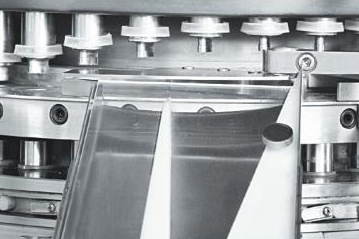

No dead area in press chamber and easy to be abserved and cleaned.
Technical parameters
|
參數 |
Data |
GZPK-51 |
GZPK-65 |
GZPK-83 |
|
沖頭數 |
No. of stations |
51 |
65 |
83 |
|
沖模類型 |
Tooling type |
D |
B |
BB |
|
產量范圍（片/小時） |
Output range (Tablet s/h) |
61200-612000 |
62400-624000 |
79600-796000 |
|
轉速范圍（轉/分鐘） |
Rotation speed rang (rpm) |
8-80rpm |
||
|
主壓力 |
Main prssure |
100KN |
||
|
預壓力 |
Pre-pressure |
16KN |
||
|
最大片徑 |
Max. tablet diameter |
25mm |
16mm |
13mm |
|
異形片最大長度 |
Max. length of irregular tablet |
25mm |
19mm |
16mm |
|
沖模直徑 |
Diameter of die |
38.1 mm |
30.16mm |
24mm |
|
最大填充深度 |
Max. filling depth |
20mm |
20mm |
16mm |
|
沖桿直徑 |
Diameter of punch |
25.35mm |
19mm |
19mm |
|
沖頭長度 |
Length of punch |
133.6mm |
||
|
沖頭所在圓周直徑 |
Pitch circle diameter |
720mm |
||
|
主電機功率 |
Main motor power |
11kW |
||
|
重量 |
Weight |
3380kg |
||
|
外形尺寸 |
Dimension |
1294 x 1500 x 2000mm |
||
