Home » Products » Tablet Press Machine » GZPK580i Series Double Discharging High-speed Rotary Tablet Press

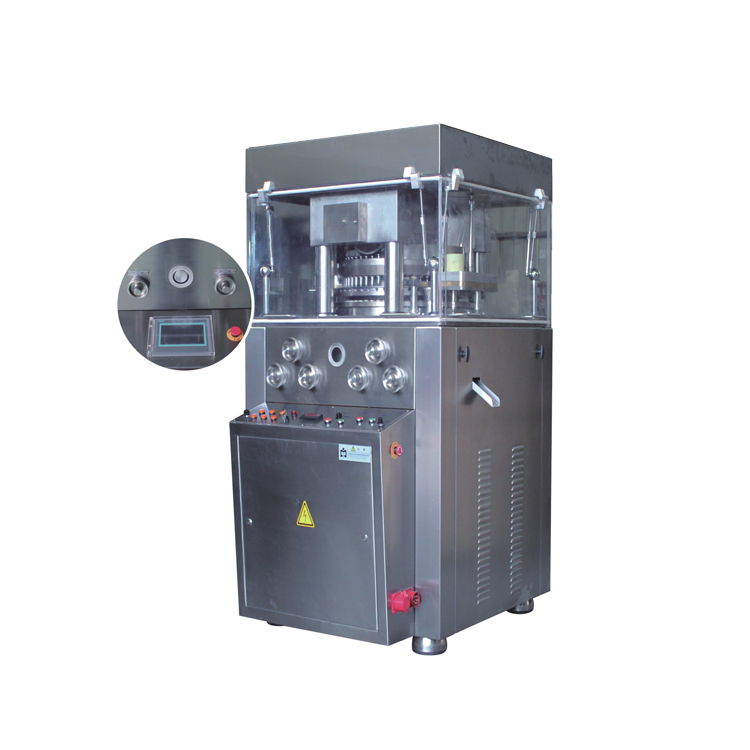

The machine is a double-press type continuous automatic rotary tableting machine, mainly used in the pharmaceutical industry, tablet production, and also the chemical, food, electronics, plastics, metallurgy and other industrial sectors
Fully enclosed compression compartment, structure and material are in compliance with GMP requirements
Technical parameters
|
參數 |
Date |
GZPK580i |
|||
|
沖模數 |
Quantity of Punch & Die (set) |
39 |
47 |
57 |
61 |
|
沖模型式 |
Tooling type |
IPT25 35 |
IPT19 |
IPT19 |
IPT19 |
|
最大生產能力 |
Max Production Capacity (pc/h) |
22464-224640 |
27072-270720 |
32032-320320 |
35136-351360 |
|
最大主壓片力 |
Max Ma,n Pressure (kn) |
100 |
100 |
100 |
100 |
|
最大預壓壓力 |
Max Pre- pressuer(kn) |
30 |
30 |
30 |
30 |
|
最大壓片直徑 |
Max Tablet Diameter(mm) |
25 |
18 |
14 |
11 |
|
最大充填深度 |
Max.Filling Depth (mm) |
18 |
18 |
18 |
18 |
|
轉臺轉速 |
Rotation Floor Speed (r/min ) |
5-48 |
5-48 |
5-48 |
5-48 |
|
電機功率 |
Motor Power (kw) |
75 |
75 |
75 |
75 |
|
外型尺寸 |
Overall Size (mm) |
1050 x 1400 x 2160 (包括瑩燈） |
|||
|
重 量 |
Weight (kg) |
3000 |
|||
