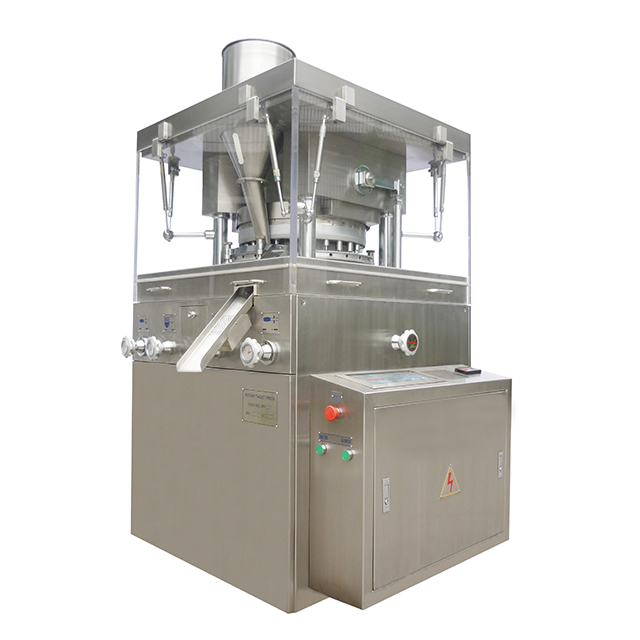

The machine is a single press type,continuous automatic tablet press machine for pressing granular raw materials into tablets.Rotary tablet press is mainly used in pharmaceutical,chemical,food electronic, plastic and metallurgical industries.Machine for precision machined stainless steel made of aluminum alloy bracket for the upper and lower independent
Features:
1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.3. It is adopts the import Frequency Timing with Electromagnetism Clutch.4. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.5. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust
Main Technical Data:
| Stations (unit) | 31 | Thickness of the die (mm) | 28 |
| Maximum compression (KN) | 80 | The diameter of the circle of the central pitch of upper &lower punches on the turret | 320mm |
| Max. Diameter of tablet to be produced (mm) | 13 | Rotary speed of the turret (rpm) | 10-35 |
| Max. Filling depth (mm) | 15 | Capacity of the tablets (tablets/hour) | 150,000 |
| Max. Thickness of tablet (mm) | 6 | Area to occupy (mm 2 ) | 1500*1300*1650mm |
| Diameter of the upper/lower shank (mm) | 32 | Height of the machine (mm) | 1650 |
| Length of the upper shank (mm) | 175 | motor power (kw) | 3 |
| Length of the lower shank (mm) | 183 | Net weight of the machine (kg) | 1.8 |
| Diameter of the die (mm) | 36 |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
Learn More
This machine is a single-press type, continuous automatic tablet press for pressing the granular raw material into the round tablets and irregular tablets etc. It is especially caters for small-batch production.This machine is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.In addition, it is equipped with the overload protection devices. The powder absorbing box is installed on one side of the machine. It can absorb the powder from the operation of the machine via suction port to avoid bonding and clogging, and it also can recycle the raw material for reproduction.
Learn More
Develop ZP-17D model according to GMP standard .offer such laboratories of R & D institution as the pharmacy ,food ,chemical industry ,etc .
It is the best ideal equipment to trial-produce or produce in small batch to suppress various kinds of particles form grain to ring tablet and abnormity .Stainless steel packaging of the appearance .operating room Lucite all opened new-type structure closed completely to clear bright .without any dead angle to remove incidentals .The machine has the advantage of little volume .light weight ,neat appearance ,safe warring device , complete dust collect performance .low noise .Rotary adopt step less frequency conversion to adjust the speed .
