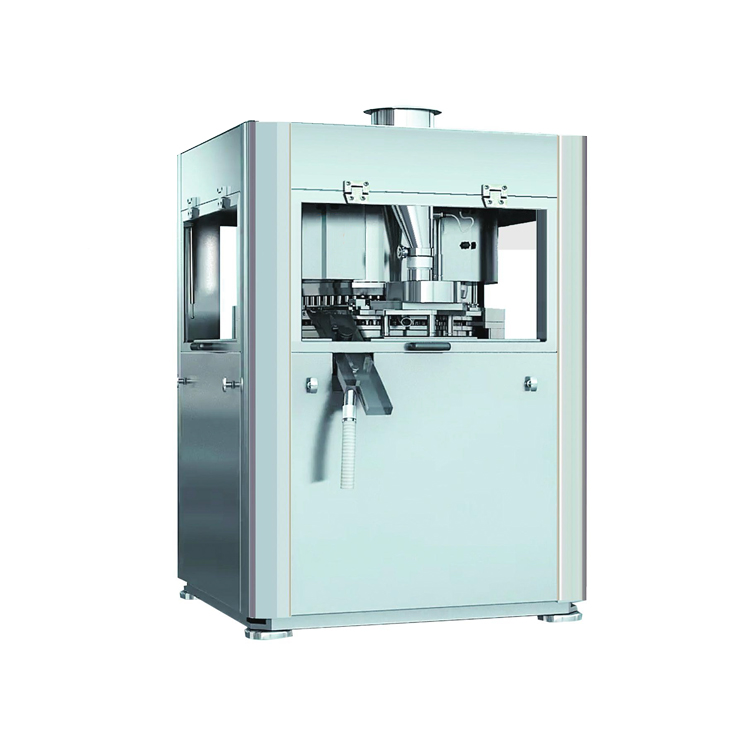

Home » Products » Tablet Press Machine » GZPK-720 Automatic Double Discharging High-speed Tablet Press
Characteristic
No hand wheel, system control adjustment
Fully automatic centralized lubrication system
Special oil, dust and noise prevention system
High definition, isolated window design
Pressing chamber 360° without dead angle full opening structure, cleaning operation, easy maintenance
Unique four-column frame structure ensures mechanical stability and durability
The heat treatment process of the plate is synchronized with the international and has a long life.
Main features: (CGMP traceable models have the features)
PLC control with automatic protection (overpressure, overload, emergency stop)

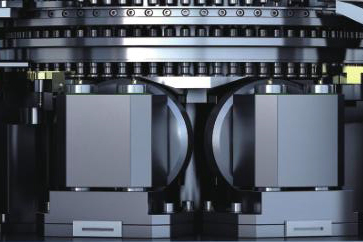

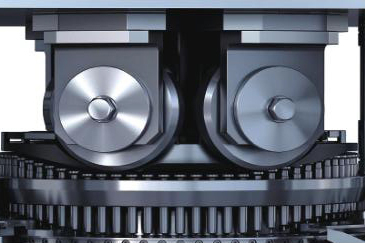

Double pressure type, fully enclosed structure
Frequency adjustment
Man-machine interface, easy to operate and friendly
Digital display main pressure, sheet force, tablet thickness, fill depth and speed
CE configuration options
With pressed tablet data screen printing function
Technical parameters
|
參數 |
Data |
GZPK-51 |
GZPK-65 |
GZPK-83 |
GZPK-99 |
|
沖頭數 |
No. of stations |
51 |
65 |
83 |
99 |
|
產量范圍（片/小時） |
Output range (Tablet s/h) |
47000-470000 |
62400-624000 |
79600-796000 |
95000-950000 |
|
轉速范圍（轉/分鐘） |
Rotation speed range (rpm) |
8-80rpm |
|||
|
主壓力 |
Main pressure |
100KN |
|||
|
預壓力 |
Pre-pressure |
||||
|
沖具型式 |
Tooling type |
D |
B |
BB |
TF-16 |
|
最大片徑 |
Max tablet diameter |
25mm |
16mm |
13mm |
10mm |
|
異型片最大長度 |
Max length of irregular tablet |
25mm |
19mm |
16mm |
11mm |
|
沖模直徑 |
Diameter of die |
38.1 mm |
30.16mm |
24mm |
24mm |
|
最大填充深度 |
Max filling depth |
20mm |
18mm |
18mm |
18mm |
|
主電機功率 |
Main motor power |
11kW |
|||
|
沖桿直徑 |
Diameter of punch |
25.35mm |
19mm |
16mm |
|
|
重量 |
Weight |
5500kg |
|||
|
主機外形尺寸 |
Dimension of machine |
1300 x 1300 x 2000mm |
|||
|
電控柜外形尺寸 |
Dimension of control cabinet |
890 x 500 x 1200mm |
|||
