Home » Products » Tablet Press Machine » GZP-540 Double Discharge Tablet Press

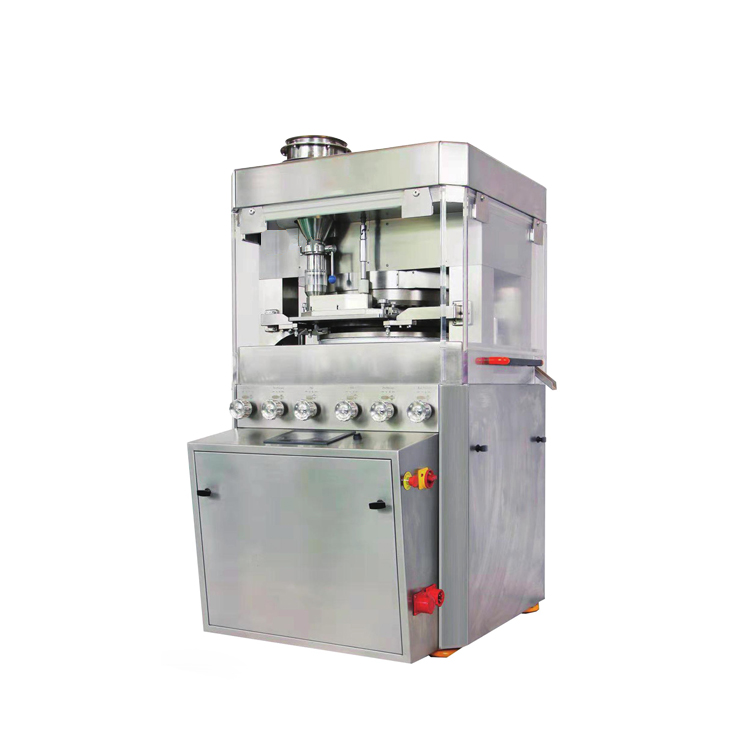

GZPK540 series rotary tablet press is a series of products. Mainly used in the pharmaceutical industry, but also in the chemical, food, electronics and other industries. It can produce round pieces of various specifications, special shaped shaped pieces and double-sided lettering pieces.
Product Description
GZPK540 series rotary tablet press is a series of products. Mainly used in the pharmaceutical industry, but also in the chemical, food, electronics and other industries. It can produce round pieces of various specifications, special shaped shaped pieces and double-sided lettering pieces.
Main Feature
Quasi-high speed, double film, ZP61 production can reach 350,000.
The maximum main pressure can reach 100KN, and the maximum pre-pressure is 30KN, which is higher than other ordinary rotary tablet presses.
After industrial design, the appearance is novel and beautiful, and generous and simple.
It meets GMP requirements, compact structure, reliable performance, easy operation, and quick cleaning and replacement.
Man-machine interface, friendly and convenient operation. It has a sheet thickness display and a fill display.
Thin oil lubrication uses an advanced volumetric lubrication system. Make the oil supply of each lubrication point more accurate and reliable.
Disassemble the convenient forcing feeder.
Technical parameters
|
參 數 |
Data |
ZP61 |
ZP57 |
ZP47 |
ZP39 |
|
沖模數 |
Stations |
61 |
57 |
47 |
39 |
|
沖具型式 |
Model |
EU19 BBS |
TSM19 (EU19) BB |
TSM19 (EU19) B |
TSM19 (EU19) D |
|
最大片徑 |
Max.Tablet Diameter (mm) |
11 |
14 |
18 |
25 |
|
最大轉臺轉速 |
Max.Rotation Speed (r/min) |
5- 48 |
|||
|
最大產量 |
Tablets/h |
35136- 351360 |
32032- 320328 |
27027- 270720 |
22464- 224640 |
|
最大主壓力 |
Max. Main Pressure (kn) |
100 |
|||
|
最大預壓力 |
Max. Pre-pressure (kn) |
30 |
|||
|
工作電壓 |
Voltage (v/hz) |
AC 380/50 |
|||
|
主電機功率 |
Main Motor Power (kw) |
7.5 |
|||
|
機器占地面積 |
Machine Area (mm) |
1300 X 1100 |
|||
|
機器高度 |
Machine Height (mm) Alarming light included |
2160 |
|||
|
機器重量 |
Machine Weight (kg) |
3000 |
|||
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Main application This machine is a single-press/doule-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
