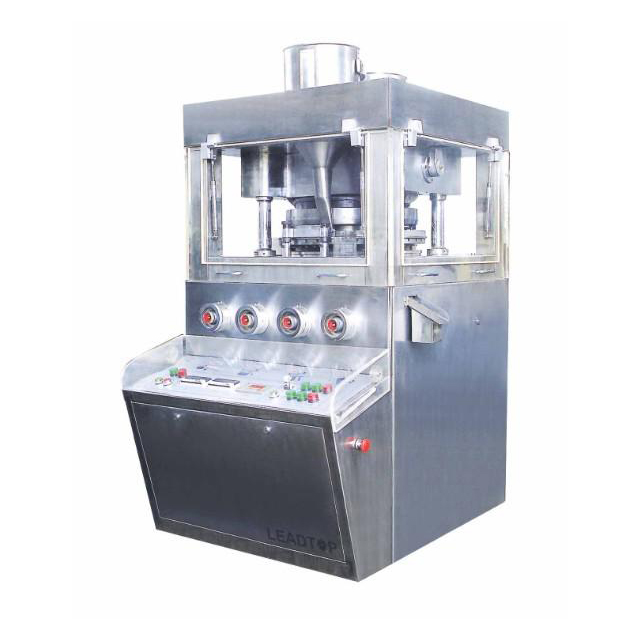

Home » Products » Tablet Press Machine » ZP-31 control Precompression High Speed Tablet Press Machine
That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
Application:
That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
Features:
1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.
2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.
3. It is adopts the import Frequency Timing with Electromagnetism Clutch.
4. The system of Hydraulic Pressure keep the working pressure under steady, when the pressure over-loading, it will be stopped the machine automatically.
5. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.
6. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust
Main Technical Data:
|
Stations (unit) |
17 |
Thickness of the die (mm) |
28 |
|
Maximum compression (KN) |
80 |
Diameter of the die (mm) |
36 |
|
Max. Diameter of tablet to be produced (mm) |
20 |
Rotary speed of the turret (rpm) |
10-37 |
|
Max. Filling depth (mm) |
22 |
Capacity of the tablets |
37,700pcs/hour |
|
Max. Thickness of tablet (mm) |
6 |
Area to occupy (mm 2 ) |
930x950 |
|
Diameter of the upper/lower shank (mm) |
27mm |
Height of the machine (mm) |
1750 |
|
Length of the upperpunch (mm) |
115 |
motor power (kw) |
2 |
|
Length of the lowerpunch (mm) |
183 |
Net weight of the machine (kg) |
800 |
