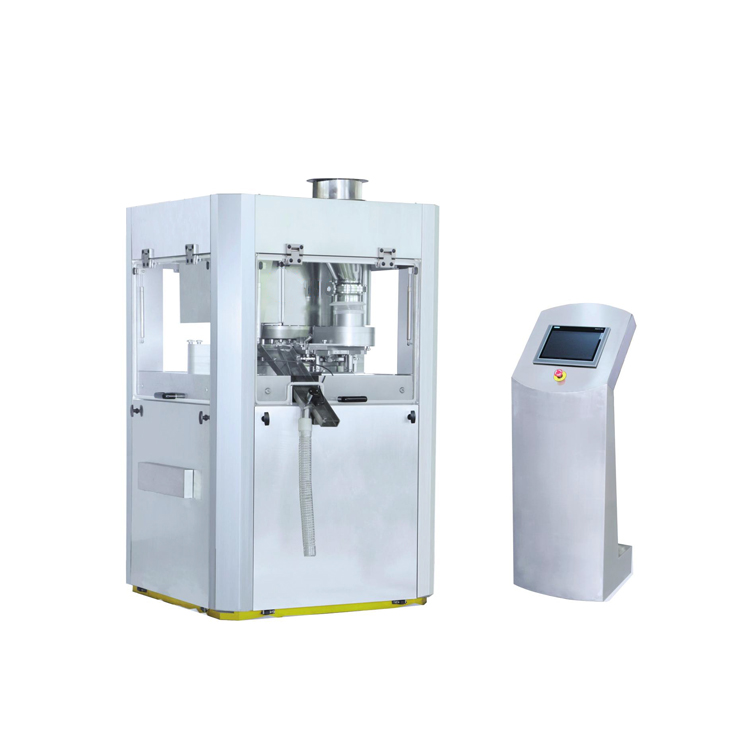

Home » Products » Tablet Press Machine » GZPK561 Automatic High-speed Tablet Press
Technique advantages
Interchangeable turrpet. Convenient for machine clean and change over, which improves the produc-
tion efficiency
Vertical powder feeding and large diameter hopper can handle powder with bad fluidity, suitable for
pressing not granulated powder

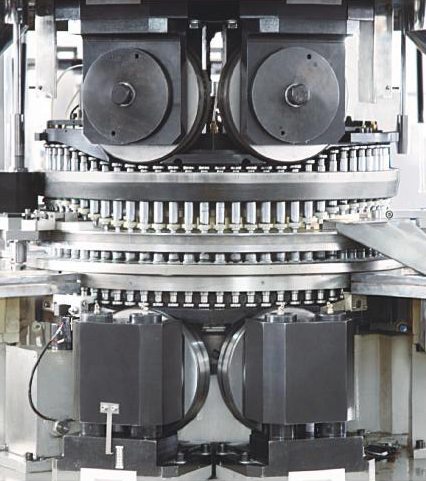

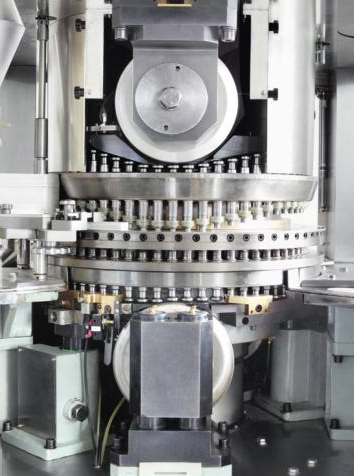

Full servo control for press rollers position and dosing adjustment.
High precisionPressure of all the 3 roller can be displayed, convenient for adjustment
No hand wheel operation. All operation information can be shown and adjusted on screen
Equipped with electronic records and electronic signatures, which meets the FDA'S requirement.
Technical parameters
|
參數Data |
GZPK-41 |
GZPK-51 |
GZPK-61 |
GZPK-79 |
|
No. of stations |
41 |
51 |
61 |
77 |
|
Tooling type |
D |
B |
BB |
TF-16 |
|
Turrel rotation speed (R.P.M) |
9-90 |
|||
|
Output range (Tablet s/h) |
22140-221400 |
27540-275400 |
32940-329400 |
42660-426600 |
|
Main motor power |
11KW |
|||
|
First station pressure |
100KN |
25KN |
||
|
Second station pressure |
100KN |
25KN |
||
|
Third station pressure |
100KN |
25KN |
||
|
Max. tablet diameter |
25mm |
16mm |
13mm |
10mm |
|
Max. length of irregular tablet |
25mm |
19mm |
16mm |
11mm |
|
Max. filling depth for first layer |
19mm |
19mm |
15mm |
15mm |
|
Max. filling depth for second layer |
6-8 |
|||
|
Max. tablet thickness |
12mm |
|||
|
Dimension of machine |
1180 x 1180 x20235mm |
|||
|
Dimension of control cabinet |
890 x 510 x 1200mm |
|||
|
Weight |
4000kg |
|||
|
Remarks |
The maximum output refers to the maximum output achieved when the sheet type is circular, the sheet diameter is the smallest and the rotational speed is the highest. The yield is different with different diameter and type. |
|||
