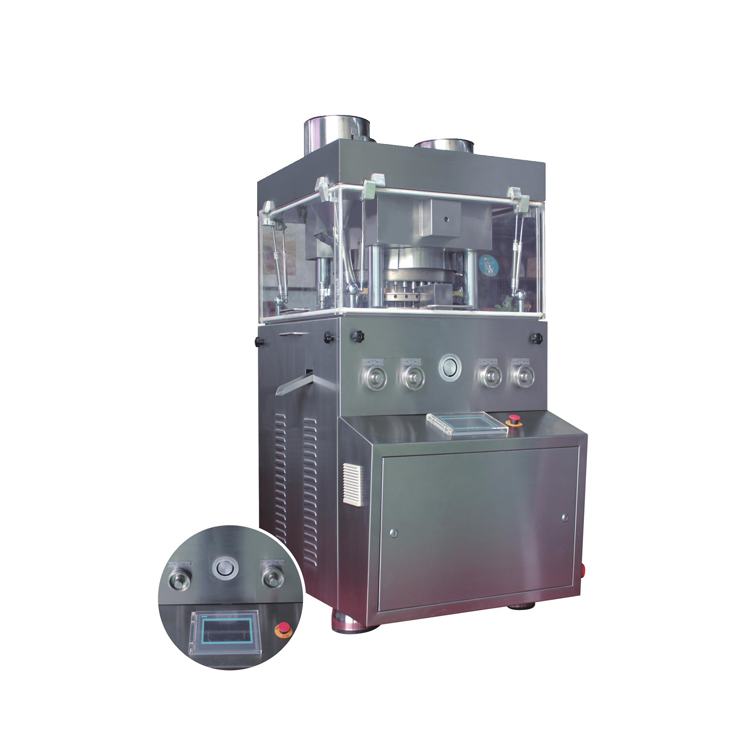

Home » Products » Tablet Press Machine » ZPT420Di Double Discharging Rotary Tablet Press
Product Features
Peripheral casing is closed form which is made of all stainless steel, internal mesa adopt stainless steel material, 1t can keep the surface glossy and prevent cross contamination and meet GMP require－ment.
It is equipped with organic glass and visual window, visual tablet state, all of the side plate can turn on and clear up and maintanence is easy.
All controller and operating parts are rational layout.
It is equipped with variable frequency speed control device for electrical control, convenient operation, steady running.it is safe and accurate.
It is equipped with overload protection device, when pressure overload, it can stop automaticly.
It is the mechanical and electrical integration, has touch key and screen display.
Be the leader in trying to use semi-automatic lubrication device and the top of rotary table is epuipped organic glass dust prevention device.
Transmission system is sealed on the main tank below, is a safe separation of independent compo-nents, also has no cross pollution, and transmission of infiltration in the oii pool, easy to has heat output and also it is wearable.
It is equipped with powder absorbing device , can absorb indoor dust.
Wearing parts like orbit, feeder, hopper, drive worm, powder taking equipment and it has general structure with ZP33 type product . it is helpful for standardization, generalization and senation.
Technical parameters
|
參數 |
Data |
ZPTK31Di |
ZPTK39Di |
|
沖模數 |
Quantity of Punch & Die (set) |
31 |
39 |
|
最大壓片壓力 |
Max. Pressure (kn) |
80 |
60 |
|
最大片徑 |
Max. Dia. of Tablet (mm) |
20 |
13 |
|
最大片厚 |
Max. Thickness of Tablet (mm) |
6 |
6 |
|
最大充填深度 |
深度 Max. Depth of Filling (mm) |
15 |
15 |
|
轉臺轉速 |
Rotate Speed (r/min) |
3-35 |
3-35 |
|
生產能力 |
Production Capacity (pc/h) |
130200 |
163800 |
|
電 壓 |
Voltage(v/Hz) |
380/50 |
380/50 |
|
功 率 |
Motor Power (kw) |
4 |
4 |
|
外形尺寸 |
Overall Size (mm) |
1240x980x1650 |
1240x980x1650 |
|
重 量 |
Weight (kg) |
1850 |
1850 |
