Home » Products » Tablet Press Machine » High Speed Rotary Pill tablet press machine making pharmaceutical

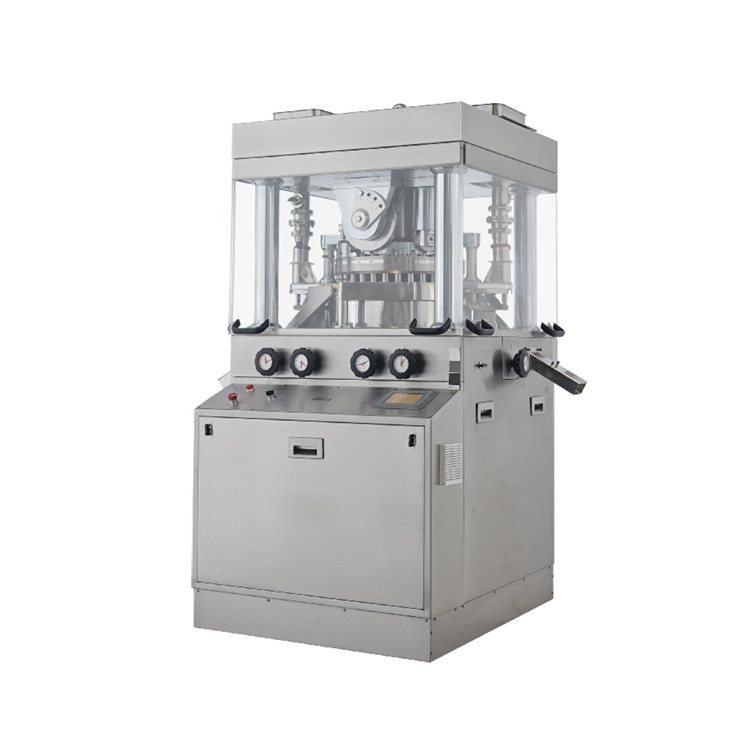

High quality machines are based on advanced and reasonable design. New design GZPK370 series high speed tablet press is developed on the basis of years manufacture expertise with it’s excellent standardization and modularity in series.
Performance
High quality machines are based on advanced and reasonable design. New design GZPK370 series high speed tablet press is developed on the basis of years manufacture expertise with it’s excellent standardization and modularity in series.
Main Features
1. Design of GMP.
2. High quality all stainless steel construction.
3. Reliable overall sealing and dust-proof system.
4. High visibility isolated door to prevent cross contamination.
5. Easy remove parts for maintenance.
6. 360 degree for easy observation and cleaning.
Pre-pressure and main pressure, compact design and five-pole construction to ensure conforming upon heavy load pressure, long dwell time and steady performance. Also increasing tablet weight accuracy and tablet hardness control.
Force Feeding System
High precision, easy removed force feeder with two agitators for improving granule fluidity to ensure precision feeding.
Main Technical Data
Product No.
GZPK370-26
Quantity of Punch & Die (set)
26
Tooling Type
D
Main Pre-pressure (kn)
16
Max. Pressure (kn)
100
Max. Dia. of Tablet (mm)
25mm
Max. Thickness of Tablet (mm)
1-8
Max. Depth of Filling (mm)
25
Middle Die Diameter (mm)
38.1
Punch diameter (mm)
25.35
Rotation Speed (r/min)
13-110
Production Capacity (pcs/h)
130000
Voltage (v/hz)
380/50
Motor Power (kw)
7.5
Outside Size (mm)
820×1100×1750
Weight (kg)
1600
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
Learn More
Gzpk620 double discharge high-speed rotary tablet press is designed with double forced feeding and double discharge structure. The process of filling, metering, pre pressing, main pressing and tablet discharging is completed twice a week by rotating the punching plate. The maximum output can reach 580000 tablets / hour. The equipment has stable working performance, stable machine operation and low noise. Replace one set of guide rail, press double-layer piece.
Learn More
