Home » Products » Tablet Press Machine » ZPSS226 Double Color Rotary Tablet Press
This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Characteristics
The outside part of the machine is fully- enclosed, and it is made of stainless steel, meeting the G.M.P requirement .
It has transparent windows so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance is easier.
The machine can press not only round tablets but also different geometrical shape tablets, double- layered and annular tablets, the tablets may have the impressed letters on both sides.
All the controller and devices are located in one side of the machine, so that it can be easier to operate.
An overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload cccurs
The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, prevent cross pollution
Can be compressed double color tablets
技術參數 Technical parameters
參數
Data
ZPSS226-16
沖模數
Dies (sets)
16
最大壓力
Max Pressure (kn)
60
最大預壓
Max-pre-pressure(kn)
10
最大片徑
Max Dia.of Tablet (mm)
13-16
第一層充填深度
First layer Depth of Filling (mm)
7
第二層充填深度
Second layer Depth of Filling (mm)
0.5-8
轉臺轉速
Rotate Speed (r/min)
4-12
生產能力
Production Capacity (pc/h)
11520
電 壓
Voltage(v/Hz)
220/380
功 率
Motor Power (kw)
2.2
外形尺寸
Overall Size (mm)
1627x965x810
重 量
Weight (kg)
850
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

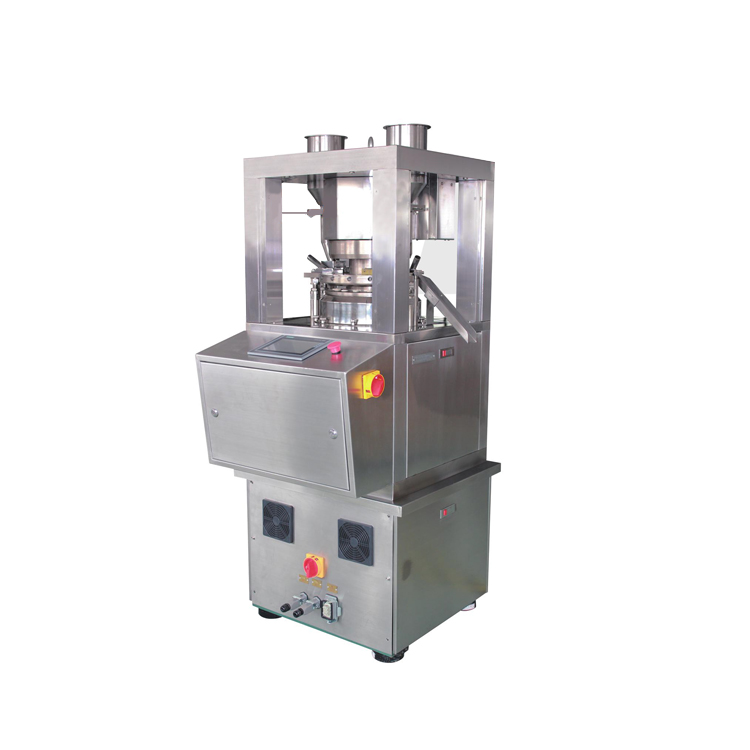

Develop ZP-17D model according to GMP standard .offer such laboratories of R & D institution as the pharmacy ,food ,chemical industry ,etc .
It is the best ideal equipment to trial-produce or produce in small batch to suppress various kinds of particles form grain to ring tablet and abnormity .Stainless steel packaging of the appearance .operating room Lucite all opened new-type structure closed completely to clear bright .without any dead angle to remove incidentals .The machine has the advantage of little volume .light weight ,neat appearance ,safe warring device , complete dust collect performance .low noise .Rotary adopt step less frequency conversion to adjust the speed .
This machine is a single-press type, continuous automatic tablet press for pressing the granular raw material into the round tablets and irregular tablets etc. It is especially caters for small-batch production.This machine is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.In addition, it is equipped with the overload protection devices. The powder absorbing box is installed on one side of the machine. It can absorb the powder from the operation of the machine via suction port to avoid bonding and clogging, and it also can recycle the raw material for reproduction.
