Application:

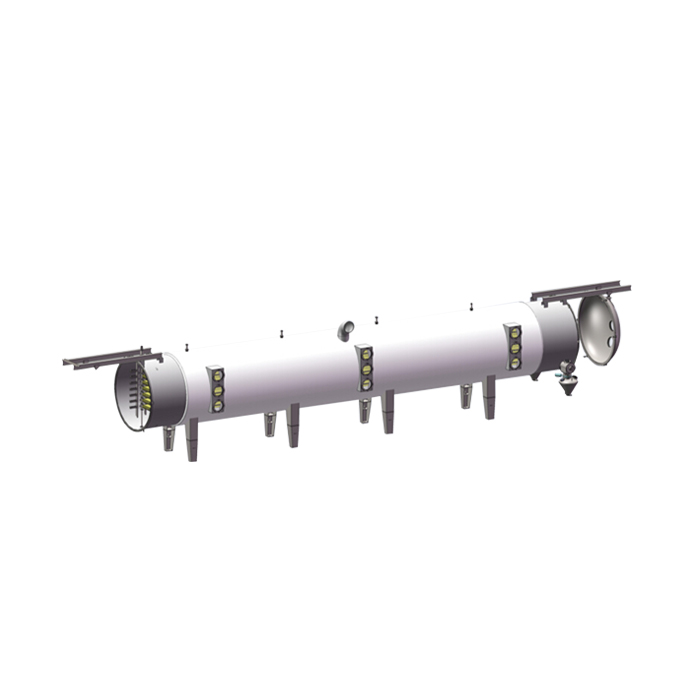

VB-Top-Series Vacuum & low temperature belt drying machine is a type of dynamic automation drying equipment with feature of heating the liquid or solid with continuous feeding, continuous evaporation and continuous charge in vacuum environment.

Vacuum Belt Dryer is particularly suitable for drying large-scale, high-viscosity plant extract extracts. Due to the use of non-sticky Teflon coated conveyor belts, the material is easy to peel from the conveyor belt , The entire process is completely in pipeline running, So the finished product yield is extremely high (more than 98%). Compared with the same capacity of the spray drying equipment, energy consumption is only 1/4, VB-Top-Series which USES hot water to heat, is less energy-intensive than the same kind of equipment that is heated by steam, and is now the main equipment for drying the extract of traditional Chinese medicine.

Main Technical Data:

Advantage:

1. With functions of automatic batching, automatic feed, the feed rate is adjustable, the final concentration ointment density can reach to 1.3 and solid-liquid mixtures.

 2. With vacuum degree on-line automatic adjustment function, dynamic vacuum degree can be arbitrarily set in the range 1000 ~ 5000 pa.

 3. Have function of Online automatically adjust the heating temperature, the heating temperature can be set in the range of 40 ~ 135 ℃.

4. With continuous feeding and continuous discharge, Online crushing and grinding function, crushing level count up to 100 mesh.

5. Conveyor belt automatic online correction function, speed adjustable, drying time is up to 72 hours continuously.

6. The whole drying process realizes the pipe-lining and completely isolated from the external environment, to avoid heat pollution.

7. The whole drying process realizes automation control, reduce the labor costs, all process parameters have reversible search.

8. Use hot water closed-circuit circulation heating technology, greatly reduce the energy consumption, is only 1/5compare with the spray drier.

9. Equipped with a full set of online automatic cleaning system, can cleaning and drying of equipment fast and  test the cleaning effect.
