Home » Products » Drying machine » SS Pharmaceutical Vacuum Freeze Dryer Machine For 60 L Drying Capacity
This model has been successfully installed in many countries over the past 10 years, with CIP&SIP. SCADA system optional. perfect for pilot scale production for vial and clinical materials. Our freeze dryer complies with FDA & cGMP regulation.
Product Description
This freeze dryer is mainly used in the biopharmaceutical industry.
This model has been successfully installed in many countries over the past 10 years, with CIP&SIP. SCADA system optional. perfect for pilot scale production for vial and clinical materials. Our freeze dryer complies with FDA & cGMP regulation.
Pharmaceutical Lyophilizer price/Pharmaceutical and biological industries Freeze dryer machine
1.Either for tray loading bulk material, and vial production;
2.Drying capacity 60L;
3.GMP and FDA compliance.
Features
1.Sub-door available
2.Integrity design, compact and less space required
3.CIP/SIP available
4.US FDA compliance
5.Best for pilot production
6.More alarm protection, more safe on running
7.Simple operation and maintenance
Most advanced technology on Freeze dryer.
>>>Energy saving function(motor switch over, Inverter control)
>>>Auto alarm and mail to user
>>>Eutectic online determine function
>>>Precaution for maintenance
>>>Critical system backed up, auto change..(compressor, vacuum pump, circulation pump etc.)
More customer satisfied service
>>>Preventive maintenance service on warranty period
>>>AMC service of all machine life
>>>Understand all brand freeze dryer service
>>>Retrofit service and spare parts
More understanding of GMP in fabricating
>>>Separate ss with carbon steel stock
>>>Separate tool for ss and carbon steel
>>>No scratch on ss board.
>>>No residual water on clean pipeline.
Others:
Pharmaceutical industry,Biomedicine reserch,Producing adiabatic ceramic in space industry;storing of specimens and relic in archaeological industry.
Technical Data
| Freeze Drying machine | Unit | Production for Batch | ||||
| LTDG-1 | LTDG-50 | LTDG-75 | LTDG-100 | |||
| Nominal Area | m2 | 1 | 50 | 75 | 100 | |
| Capacity | Area of the heat shelf | m2 | 1.08 | 59.9 | 89.9 | 110.1 |
| Tray Area | 1.02 | 50.2 | 75.8 | 101 | ||
| Tray Size | mm | 780*510*37 | ||||
| Total Volume Dehydration (Max | Kg/batch | 15 | 1000 | 1500 | 2000 | |
1.we have seven technicians who gets passport ready to travel all over world to offer service to you.
2.We have 24hours hot line for Technical Support.
3.We get 18hours internet line for technical support.
4.Video camera in workshop to help you adjust and solve machine problem in working situation.
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials
Learn More
The Dry case is designed according to vacuum vessel of international standard. Case shape is horizontal cylinder. Exterior has multitasked stiffener to strengthen. Test the vacuum air impermeability after welding. Silicone rubber is used to seal between the drying case and the case door. Sight glass with light is set on the door. Hanger rail is set on the drying case to take the products get in and out.
Learn More

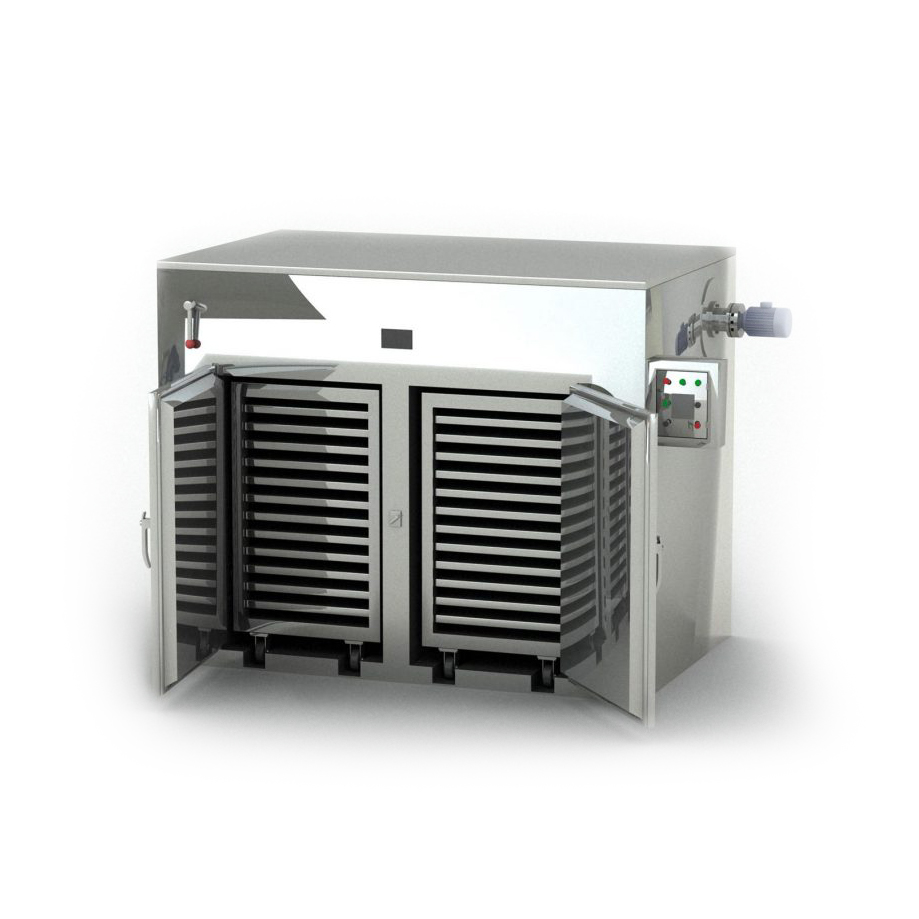

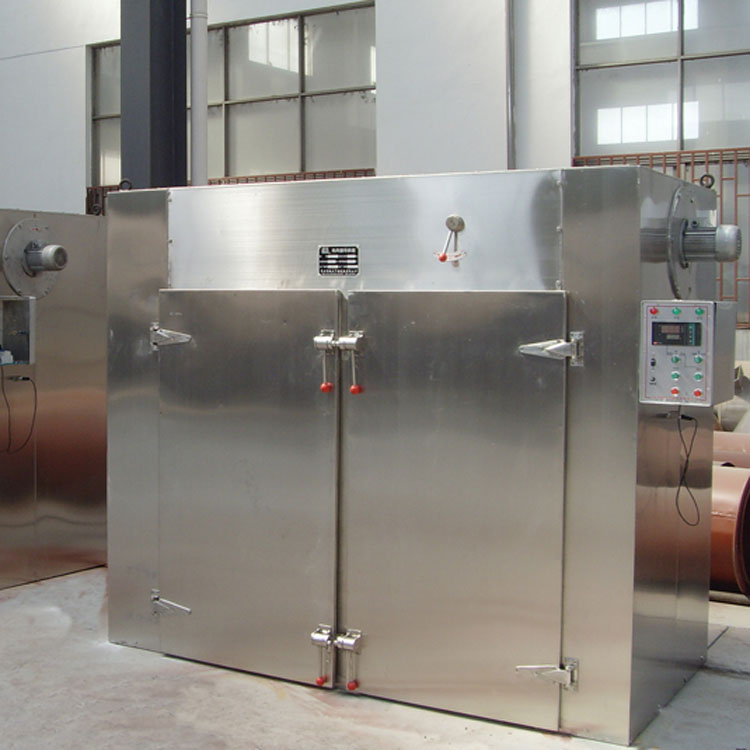

It’s applied for drying and dehumidification of material in such trades as pharmaceutical, chemical foodstuff, light industry, heavy industry etc., as well as heating and dehumidification of product, including raw medicines, original medicines, doses, traditional Chinese medicine tablet, powder, granulate, electuary, ball packing bottle, pigment, dyestuff, dried vegetable, food, plastic resin, electric clement and baking finish etc.
Learn More
The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
