Home » Products » Fine crusher » Model WF Series Cyclone Pulse Dust-collecting Fine Pulverizer
This machine is applied in such trades as pharmaceutical, chemical, foodstuff, magnetic material, powder etc., It is a new generation crushing equipment combining crushing, dust collecting and continuous discharge into a unit.
Main Application:
This machine is applied in such trades as pharmaceutical, chemical, foodstuff, magnetic material, powder etc., It is a new generation crushing equipment combining crushing, dust collecting and continuous discharge
into a unit.
Working principle:

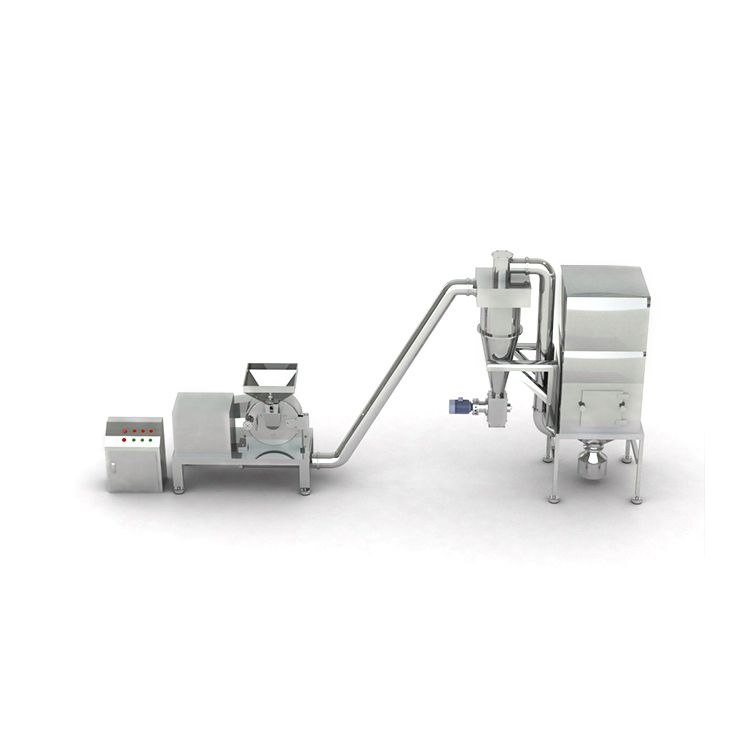

This machine is made up of crusher, cyclone separator, pulse dust-evacuator box and induced fan etc., Material is fed into chamber through the hopper, and crushed by high speed rotating hammers. The crushed
material flows into the cyclone separator by the induced fan and rotating centrifugal force, then discharge through gate blower, dust comes into the pulse dust-collecting box, filtrated and recycled by the filter cylinder.
The crushing size can be adjusted by the screen. Designed by the standard of GMP the whole machine is made of stainless steel, and there is no flying dust during the process of production.
Model
Production Capacity
Feeding Size
Crushing Fineness
Crushing motor
Dust collecting motor
Discharge motor
overall dimension
weight
WF-250
50-100kg/h
≤5mm
80-400mesh
5.5kw
2.2kw
0.75kw
3000*880*2350mm
580kg
WF-350
80-300kg/h
≤5mm
80-400mesh
11kw
3kw
0.75kw
3550*880*2350mm
800kg
WF-450
100-500kg/h
≤5mm
80-400mesh
15kw
4kw
0.75kw
4200*880*2350mm
1200kg
WF-650
300-1000kg/h
≤5mm
80-400mesh
22kw
5.5kw
1.5kw
6560*1100*2480mm
2000kg
WF-850
500-2500kg/h
≤5mm
80-400mesh
37kw
11kw
2.2kw
7800*1100*2480mm
3000kg
