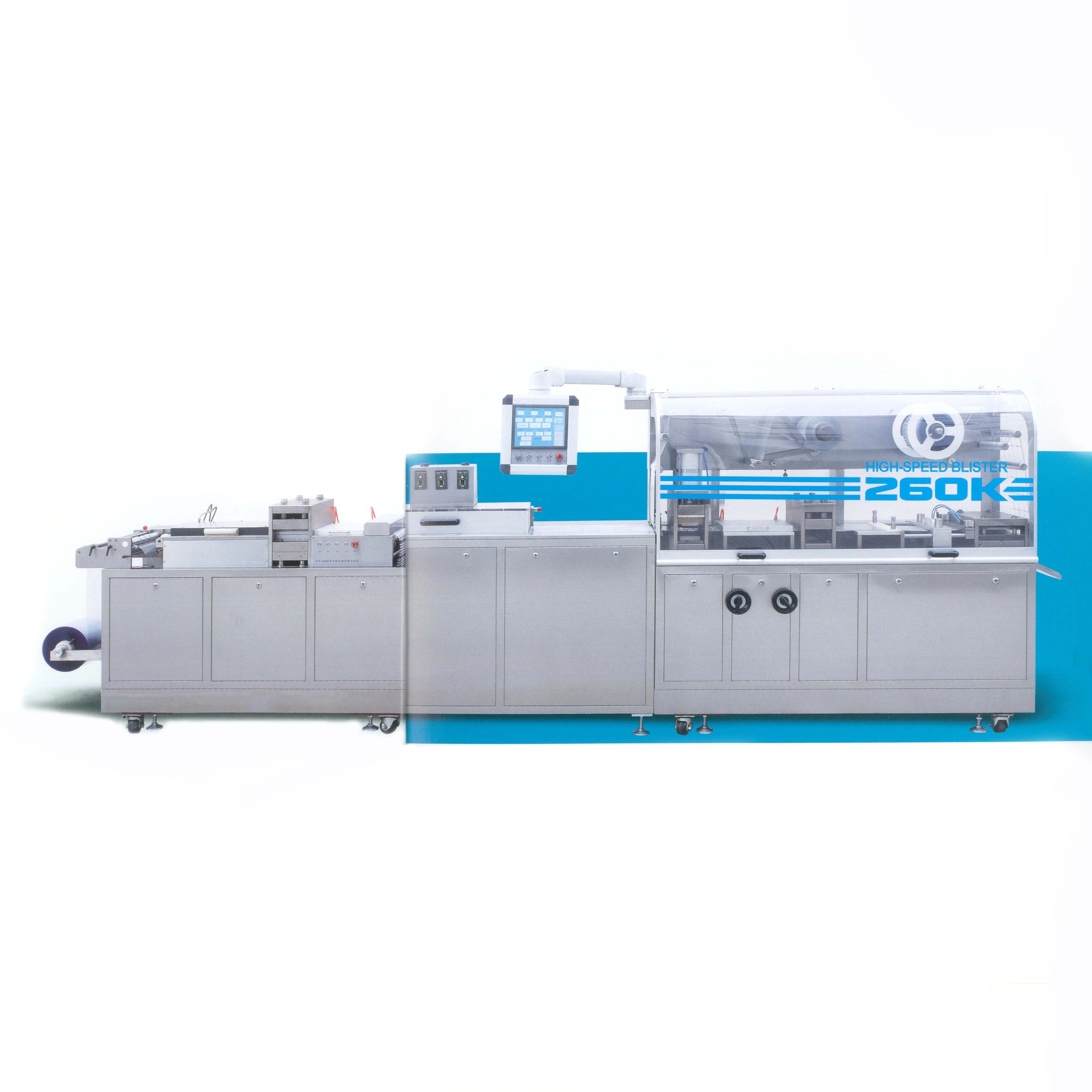

Home » Products » Blister Packing Machine » DPP-260K Flat Plate High Speed Blister Packaging Machine
This machine is newly high speed Blister Packing Machine, Forming station, feeding, heat-sealing and cutter station designed separately, different as original plate design, advanced function,easy operation, high capacity, is ideal choice for large and medium pharmaceutical enterprises, health care products companies etc. It conforms to "GMP" standard requirement.
Feature
u Human Interface PLC control, frequency speed regulation, error display, auto alarm
u Forming station, heat-sealing and cutter station adopt independent drive, double servo dragging, can freely adjust cutter and forming rate between 1:2:3:4
u Machine have three units, working table can make longer as per request, easy to assemble and disassemble, convenient to enter into workshop
u Mould adopt guide rail type, accurate position installation, only need 30-60 minutes to install and disassemble
u Cutter structure adopt "glyph" design, can save more material
u Can add rejection mechanism, connect pillow packing machine, cartooning machine as per request
Main technical parameter
u Cutting speed (Standard sheet 80*57):30-90times/min
u Power(3 phase 4 wires):AC380V/50Hz 1.05Kw
u Max.capacity:21 (10 Thousand pcs/h)
u Adjustable stroke:Forming≤180mm Heat-sealing≤110mm
u Max.forming area:250*170*14mm
u Forming heat power:6Kw
u Heat-sealing heat power:2Kw
u Forming motor and heat-sealing motor power:0.75Kw 1.5Kw
u Air pump pressure:0.6-0.8MPa
u Mould cooling:Include with water cooler
u Packing Material:Medical PVC:0.25*260mm Roller diameter 600mm
Forming Alu:0.15*260mm Roller diameter 600mm
Heat-sealing PTP:0.02*260mm Roller diameteer 300mm
u Machine overall size:5000*650*1750
u Machine Weight:1600kg
