Feature

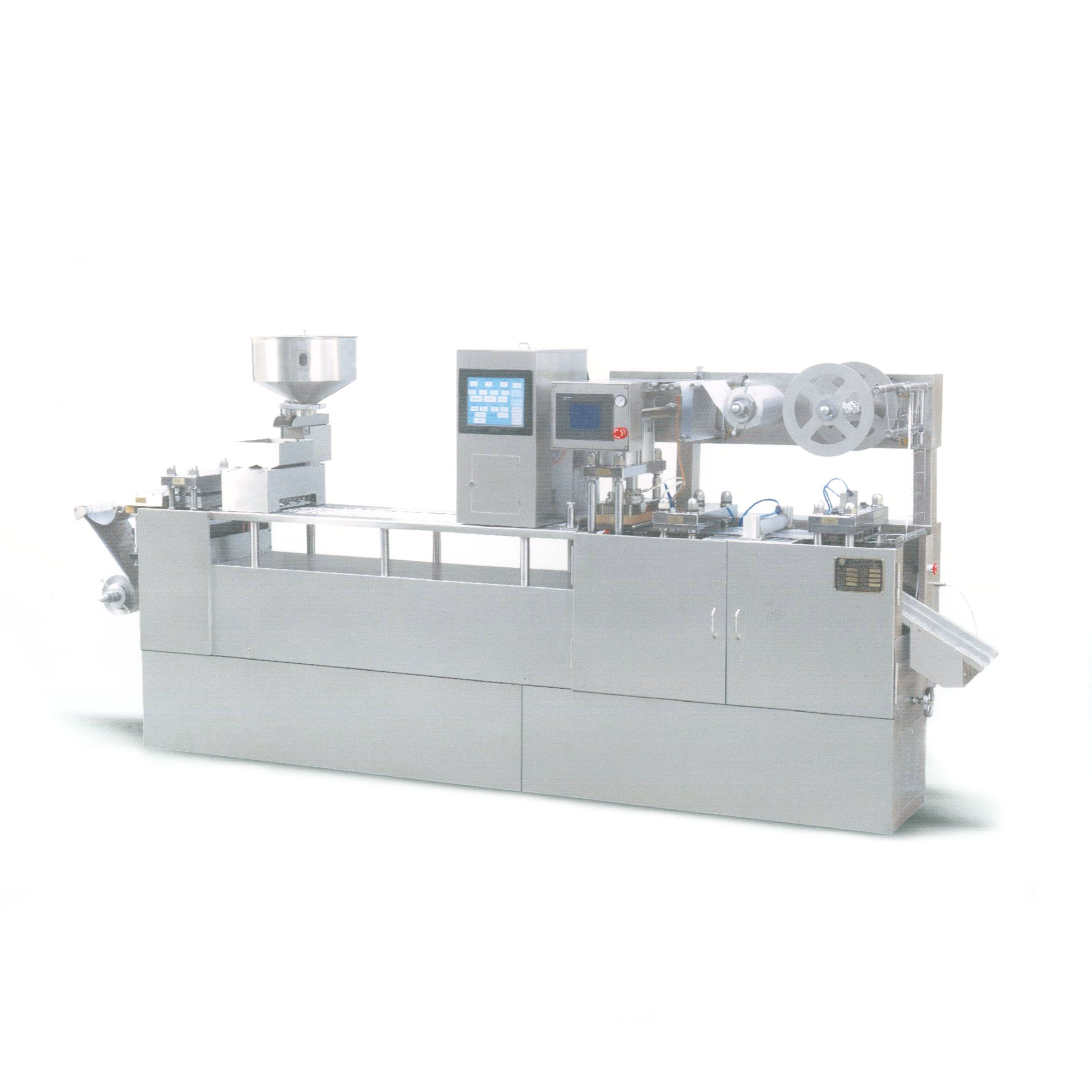

u This high dispose Alu-Alu,Alu-PVC Blister Packing Machine innovated on the basis of Model Alu-alu Packaging Machine. High dispose, advanced steady, easy operation, is current leading model in Alu/Alu Blister Packing Machine in China.

u Human Interface, PLC Control, More intelligence.

u Main drive part adopts Germany Technology, servo motor drag, running steady and accurately, with lower noise.

u Cursor tarcking register function, sealing with tidiness and good-looking appearance.

u Double layer working table multi-alarm protection function, more humanization.

u On-line photography detection, powerful function, can automatic checking lack of product (bad tablet, empty capsule, half capsule), reject full sheet, the qualified rate can reach 100%

Main technical parameter

u Cutting frequency (times/min) :Hardness aluminum 15-40;AL-plastic/paper-plastic 15-60

u Capacity(10 thousand pcs/h):AL-AL≤11  AL-plastic≤23

u Max.forming area:AL-AL 240*150*14mm；  AL-plastic 240*150*14（26）

u Stroke:40-160mm(can be manufactured as user's requirements)

u Standard plate:80*57mm(can be manufactured as user's requirements)

u Air pressure:0.4-0.6MPa

u Air supply:≥0.3m3/min

u Total power:380V/220V 50Hz 6.2Kw

u Main motor power:1.5Kw

u Forming Aluminum:0.085-0.1*260

u PVC hard pieces:0.15-0.5*260mm

u PTP aluminum foil:0.02-0.035*260mm

u Dialysis paper:50-100g*260mm

u Mould cooling:tap water or recycling water

u Machine overall size:3600*600*1600mm

u Machine Weight:1800kg
