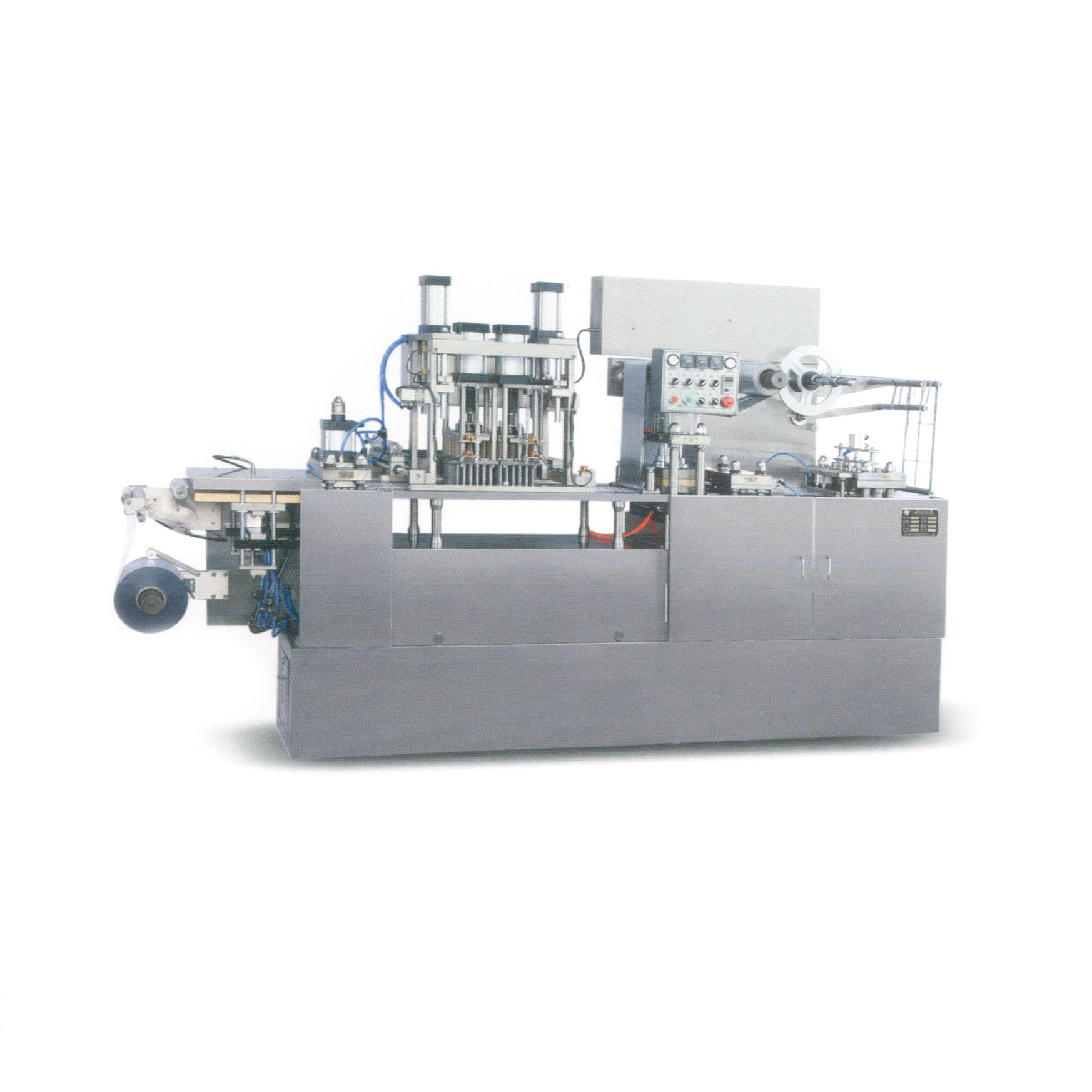

Home » Products » Blister Packing Machine » DPB-250C Flat Plate Blister Packaging Machine
This machine adopt PLChuman Interface, frequency speed regulation, high automation, easy operation. Suitable for tablet, capsule etc AL/PVC, Paper/PVC package. It conforms to"GMP""CE"Requirement.
Feature
u Adopt PLC Human Interface Operation, Chinese and English Display, easy operation and maintenance
u Servo motor dragging, digital adjustable stroke, intelligent operation
u Main drive adopt high speed motor, with high performance, longer life, lower noise, steady running
u Flat structure, register heating, positive pressure forming, up and down net web, cylinder heat-sealing, adjustable stroke, easy operation
u Heat-sealing station fixed, it can freely adjusted distance in the same flat surface for forming, perforation and cutter etc parts.It issuitable for various sizes of medicine package, and it has high precision and good suitability
u Image register, sealing good-looking
Main technical parameter
u Cutting frequency:6-60times/min
u Capacity(10 thousand pcs/h):3.5-23
u Max.forming area:240*150*14(26)mm
u Stroke:40-160mm
u Standard plate:80*57mm
u Air pressure:0.4-0.6MPa
u Air supply:≥0.3m3/min
u Total power:380V/220V 50Hz 6.2Kw
u Main motor power:1.5Kw
u PVC hard pieces:0.15-0.5*260mm
u PTP aluminum foil:0.02-0.035*260mm
u Dialysis paper:50-100g*260mm
u Mould cooling:tap water or recycling water
u Machine overall size:3100*600*1650mm
u Machine Weight:1600kg
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

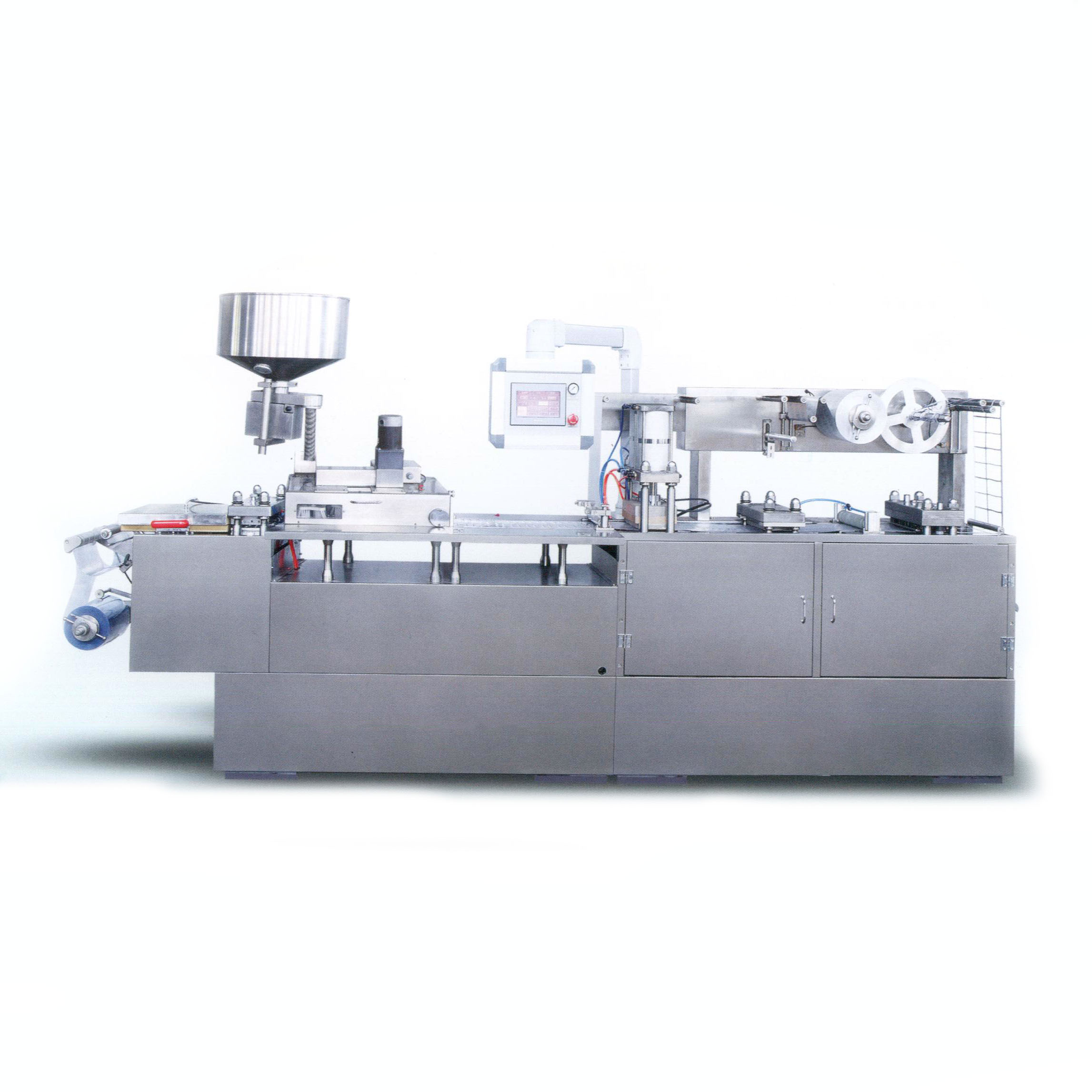

This machine issuitable for capsule, tablet honey pill, candy, one injector and irregular-shaped AL/PL, Paper/Plastic packing in pharmacy, food, electronics, medical equipment industry etc. This machine adopted with micro-computer PLC, can choose computer panel or touch screen operation, frequency Speed regulation,easy operation, it is an ideal packaging equipment at present.
Learn More
This machine adopt PLC Human Interface, frequency speed regulation, high automation, easy operation. It integrated with hard ALU(PVC) forming, Automatic Feeding, PTP sealing, batch number printing,perforation,cutting, waste winding. It conforms to "GMP" requirement, suitable for ALU/ALU, ALU/PVC, PVC/Paper package.
Learn More
This advanced high-tech XSJ Series Fish Food Blister Packaging Machine is innovated with success to meet the needs in the market by our own research, fellows. It's mainly suitable for packing red worms(akamushi), eelworm, artemia. baby shrimp etc. have been patented by the state patent administration. Its patent number is 200610008264.77. This machine has two models, model 250 and model 140. It is integrated mechanic, electric, pneumatic technologies. All the operations are controlled through signals sent off by the sensor switches. It's equipped with PLC program, simplifying the construction, making the blister locking synchronize with it to achieve the feeding the pet fish food. The packed food won't be destroyed in its cells and nutrients, and the products won't be deteriorated in the fridge at 18 below zero for within two years, which can keep the proteins and vitamins in the food from losing, keeping its sound performance of returning to water.
Learn More
本設備為我公司最新開發的全伺服系統小型鋁塑包裝機。 本設備廣泛運用于只要行業藥片膠囊及醫療器械包裝，也可用于食品行業各種固體顆粒及液體包裝。
Learn More
