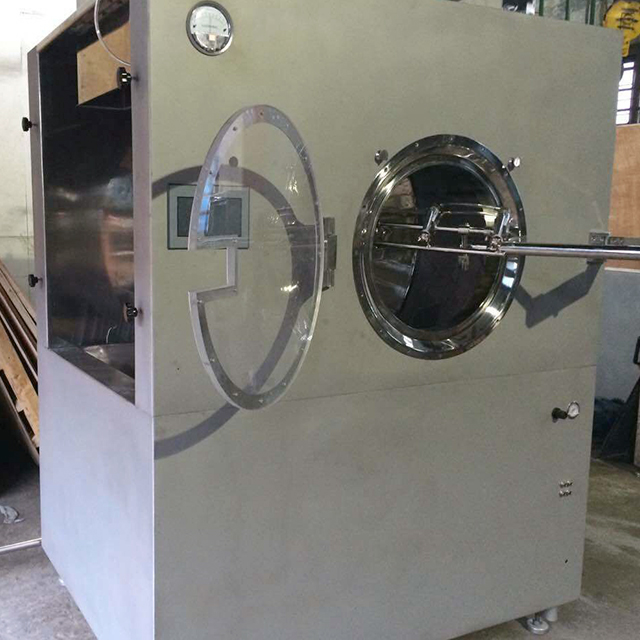

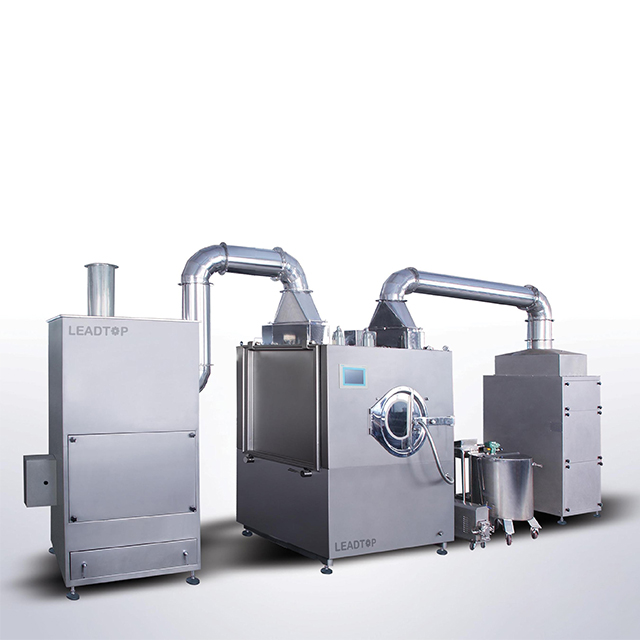

Home » Products » Film Coating Machine » BG -150E Tablet Film Coating Machine , Film Coating Equipment High Efficiency
This film coating machine can be used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film, etc. And it has such characteristics as high efficiency, low energy consumption and small floor area, etc. And it can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc.
This film coating machine can be used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film, etc. And it has such characteristics as high efficiency, low energy consumption and small floor area, etc. And it can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc.
And it has such characteristics as good appearance in design ,high efficiency, low energy consumption and small floor area, etc.
This machine is made of high-quality stainless steel elaborately and meets the cGMP, CE standard.
The tablets make complicated and constant track movement with easy and smooth turning and frequent exchanging in the clean and closed rotational cylinder of the film coating machine. And it can automatically spray coating medium according to the process flow and reasonable process parameters. The hot air exhausted through the bottom of the tablets under the effect of air exhaust and negative pressure so as to make coating medium dry quickly on the surfaces of the tablets and form a firm, fine and close and smooth surface film.
| SPECIFICATIONS FOR BG-150E High Efficiency Tablet Film Coating Machine | |
| Max. tablet volume | 150 Kg / time |
| Sugar coating drum diameter | 1200mm |
| Feed inlet dia | 480mm |
| Coating drum speed | 2-18 r.p.m |
| Host machine motor power | 2.2 kw |
| Exhaust cabinet motor power | 5.5 kw |
| Exhaust blower air flow | 6457 m3/h |
| Hot air cabinet motor power | 2.2 kw |
| Air heater air flow | 2996 m3/h |
| Hot air cleanness | 100000 level |
| External dimensions of host machine | 900*860*1950 mm |
| Host machine weight | 280㎏ |
| External dimensions of hot air cabinet | 1570*1260*2030 mm |
| Hot air cabinet weight | 850 kg |
| External dimensions of exhaust cabinet | 950x950x1800 mm |
| Exhaust cabinet weight | 550 kg |
| Clean Air Pressure | 0.4Mpa |
| Air consumption. | 80 m3 /min. |
| Power | 3 phase and 5 lines15 kw |
| Packaging | |
|
Size
|
1800*1400*2200mm
1200x1000x2200mm
1200x1000x2000mm
|
|
Weight
|
1850kg |
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
