Home » Products » Fine crusher » B Series Cyclone-separating Pulse Dust Collecting Crushing Set
This machine is applied in such trades as pharmaceutical, chemical, foodstuff, magnetic material, powder etc., It is a new generation crushing equipment combining crushing, dust-collecting and continuous-discharge into a unit.
Main Application:
This machine is applied in such trades as pharmaceutical, chemical, foodstuff, magnetic material, powder etc., It is a new generation crushing equipment combining crushing, dust-collecting
and continuous-discharge into a unit.
Working principle:

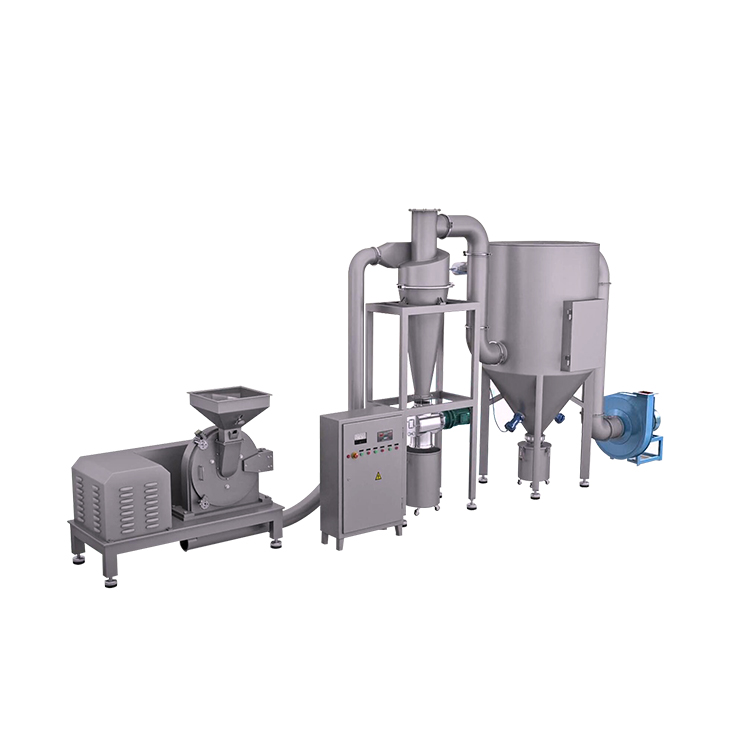

This machine is made up of crusher, cyclone separator, pulse dust collecting box and blower fan etc.. By means of relative motion between movable and fixed fluted discs, material is crushed
by impact and friction of the teeth and impact among the materials. The crushed material flows into the cyclone separator by the gravitation of blower and rotating centrifugal force, then
discharges through gate blower, dust come into the pulse dust collecting box, filtrated and recycled by the filter cylinder. The crushing size can be adjusted by the screen. Designed by the
standard of GMP the whole machine is made of stainless steel, and there is no flying dust during the process of production.
Model
Production Capacity
Feeding Size
Crushing Fineness
Spindle Speed
Crushing motor
Dust collecting motor
Discharge Motor
overall dimension
weight
20BIV,V,VI
60-150kg/h
6mm
20-120mesh
4500
r/min
4kw
2.2kw
0.75kw
3000*850*2300mm
580kg
30BIV,V,VI
100-400kg/h
6mm
20-120mesh
3800
r/min
5.5kw
3kw
0.75kw
3200*850*2380mm
880kg
40BIV,V,VI
160-1000kg/h
10mm
20-120mesh
3400
r/min
11kw
4kw
0.75kw
3500*900*2380mm
1200kg
60BIV,V,VI
500-2000kg/h
12mm
20-120mesh
2800
r/min
18.5kw
7.5kw
1.1kw
6600*1100*2380mm
2000kg
80BIV,V,VI
1000-5000kg/h
15mm
20-120mesh
2200
r/min
37kw
11kw
1.5kw
7800*1100*2500mm
3000kg
100BIV.V.VI
2000-8000kg/h
15mm
20-120mesh
1500
r/min
55kw
18.5kw
2.2kw
9980*1280*2800mm
6000kg
