Home » Products » Auto Cartoner » ANTZ-260 Automatic High Speed Continuous Cartoning Machine

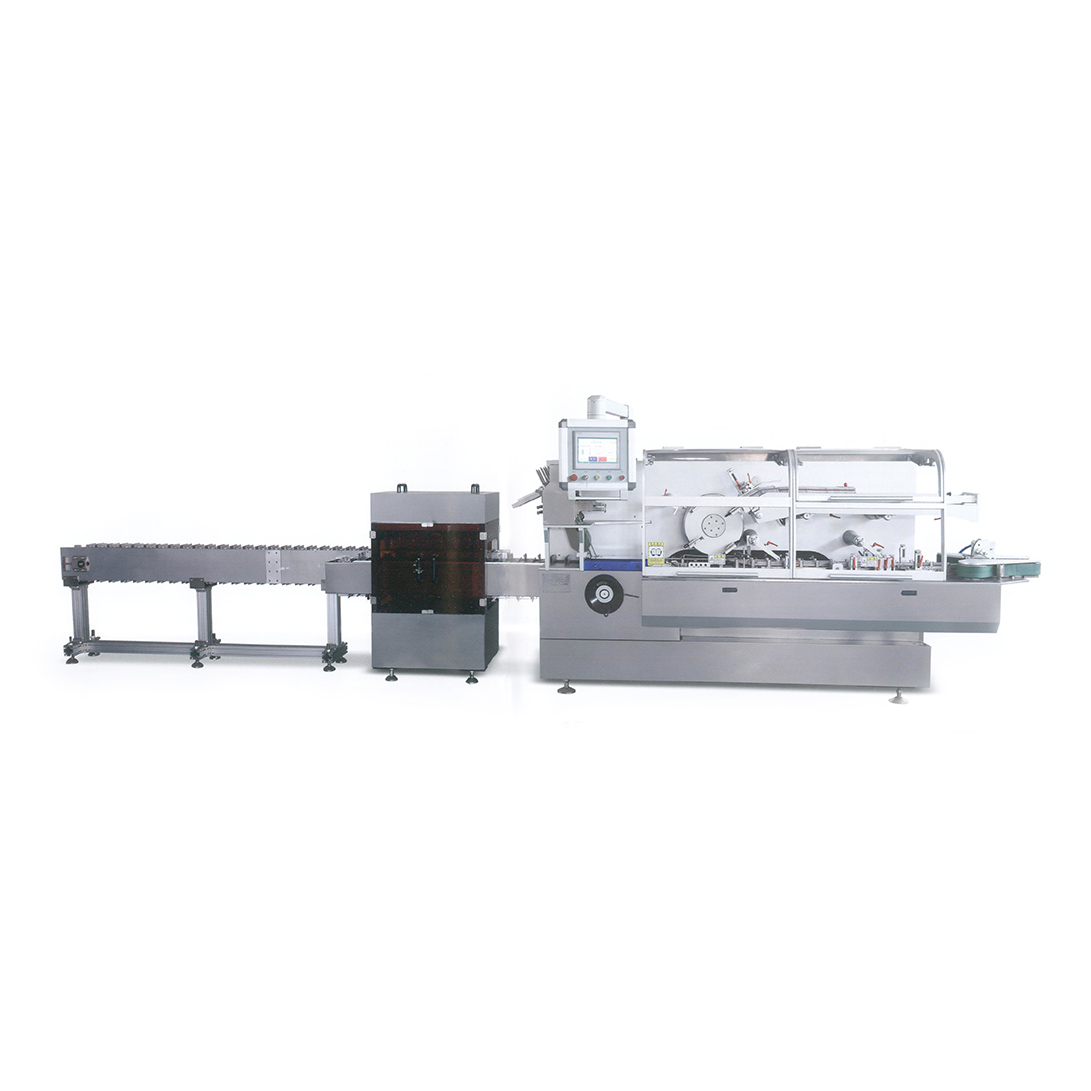

ANTZ-260 automatic high speed cartoning machine is new model with innovation design base on bringing in foreign advanced technology, also strictly according to pharmaceutical industry "GMP" standard to manufacture. With high efficiency, high performance production capacity. Leaflet folding and conveying, carton opening and forming, posterior pushing structure an drelated technology allreach Europe and USA standards; Appearance simple design and posterior continuous pushing structure make operation and maintenance more convenient; fourequal double row star wheel rotation type outward opening carton and under twice pre-formmg device to ensure that carton open and form completely. This model is automatic high speed continuous cartoning machine with high performance product incorporates pneumatic-photo-electro-mechanic. Also can link to matching machine to form production line.
|
Encasing speed |
260 Cartons/min |
|
|
Carton |
Quality requirement |
250-350g/㎡ (base on carton size) |
|
Dimension range |
(70-180)mm*(30-80)mm*(14-50)mm |
|
|
Leaflet |
Quality requirement |
60-70g/㎡ |
|
Unfold leaflet specification |
(80-250)mm*(90-170)mm |
|
|
Fold range |
1-4 fold |
|
|
Compressed air |
Working pressure |
≥0.6MPa |
|
Air consumption |
160-200L/min |
|
|
Power supply |
380V 50Hz |
|
|
Motor power |
5Kw |
|
|
Machine dimension |
4800*1600*1860mm |
|
|
Machine weight |
3000kg |
|
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
ANTZ-260 automatic high speed cartoning machine is new model with innovation design base on bringing in foreign advanced technology, also strictly according to pharmaceutical industry "GMP" standard to manufacture. With high efficiency, high performance production capacity. Leaflet folding and conveying, carton opening and forming, posterior pushing structure an drelated technology allreach Europe and USA standards; Appearance simple design and posterior continuous pushing structure make operation and maintenance more convenient; fourequal double row star wheel rotation type outward opening carton and under twice pre-formmg device to ensure that carton open and form completely. This model is automatic high speed continuous cartoning machine with high performance product incorporates pneumatic-photo-electro-mechanic. Also can link to matching machine to form production line.
The machine is designed and constructed for package medicine. The cardboard boxes are formed; and the bottles, blister, andleaflets are encased into boxes; the machine fold and seal the bottom of boxes and encased the leaflets automatically, the leafletscan be folded as 1-4 line. Printing lot# function is combined on the machine. The machine are widely applied to package medicine,food, cosmetic, health care products, etc.
