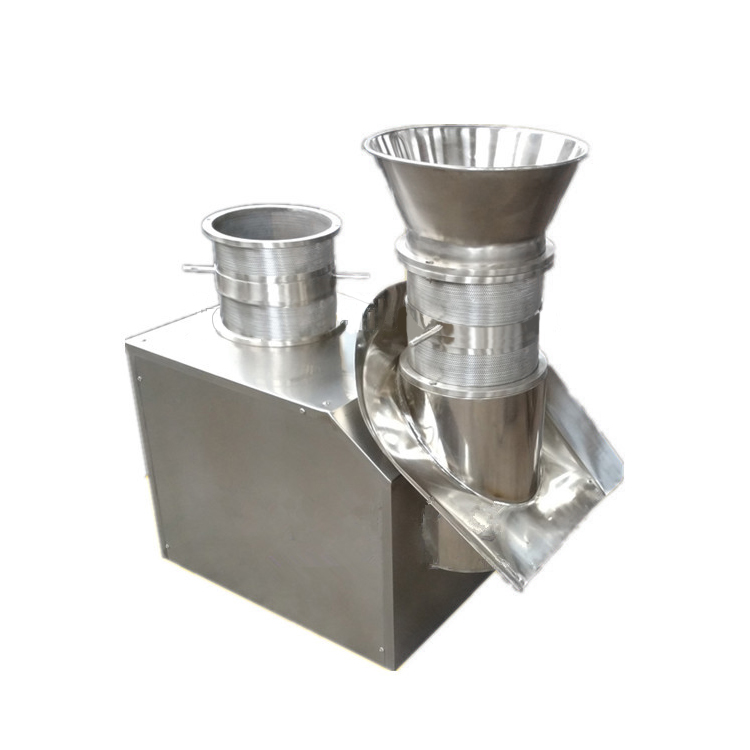

Home » Products » Granulating machine » Agricultural fertilizer extrusion spheronization granulator machine
All material contact part make by the SUS304.
Drive part use motor drive the gear box.
Some of the part with welding, gear box with flange combined with the extruder together.
Configuration:
All material contact part make by the SUS304.
Drive part use motor drive the gear box.
Some of the part with welding, gear box with flange combined with the extruder together.
Working principle:
Motor drive the gear box, make the roller extrude the material from the sieve hole, and the cutter outside cutter the stick material to the granules, and you can choose the amount of the knife to adjust the length of the granules.
Technical data:
| Model | LTXL |
| Dia. Of sieve | 85mm |
| Size of sieve | 0.8mm or 1mm |
| Roller speed | 55r/min |
| Capacity | 200g/batch 3kg /H |
| Power | 180W |
| Motor speed | 30r/min |
| Weight | 20KG |
| Size |
500x600x650 |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
The process of machine is powder and binder mixing to wet material, then to extrude and to spheroidizing on the centrifugal dish, the pellets can be got.
Learn More
All material contact part make by the SUS304.
Drive part use motor drive the gear box.
Some of the part with welding, gear box with flange combined with the extruder together.
The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Learn More
All material contact part make by the SUS304.
Drive part use motor drive the gear box.
Some of the part with welding, gear box with flange combined with the extruder together.
